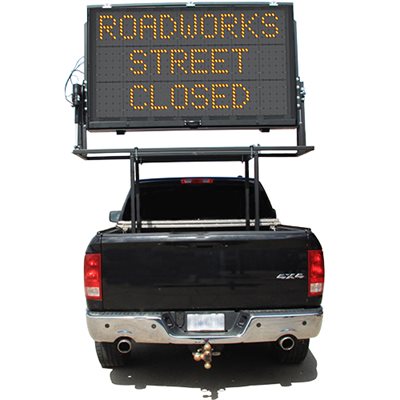

Ver-Mac Truck Mount Message Board - TM-548

Ver-Mac’s TM-548 is a truck-mounted full-matrix message sign that is powered from the truck's battery. The TM-548 offers full graphic capability including several one touch arrow and directional display and sequencing functions. The TM-548 features the innovative V-Touch controller that plugs into the cigarette lighter and a manual up/down bracket. An optional wireless version of our V-Touch controller is available to save you time and and installation costs, and our powertilt mounting option will ease your work with our automated auto up/down feature. The TM-548 is ideal for highway stripping trucks, highway emergency and helper trucks.

Product Sheet

V-TOUCH CONTROLLER (Wired or Upgrade to Wireless)

This model comes with a wired V-Touch NTCIP Compliant Controller and a 15' cable. The wireless V-Touch controller option makes installation quick and easy. Simply connect the controller in the cigarette plug and you are ready to go!

• NTCIP Compliant
• Easy to read - 7-inch color LCD touchscreen display
• Large Icons - to easily raise or lower the sign and display directional arrow pattern
• User-Friendly - one touch icon-based menu items
• Time Saving - create your own library of messages
• Simple to Operate - the intuitive point-n-go icons ensure quick and easy commands to display or edit messages
• Additional Functionalities - scheduling, sign diagnostics, pin-protected security, and much more

POWER TILT MOUNT WITH AUTO UP/DOWN FEATURE

• The Auto Up/Down feature ensures that the sign is in the display position when in use and in the travel position when unit is off preventing damage and reducing wind drag.
• Display a message and the sign automatically raises to display position
• Select off and the sign automatically lowers to travel position
• Actuator’s integrated limit switch prevents motor gear wear and tear
• Automatically detects the upright position—clear indicator on the display showing if the sign is in the up or down position

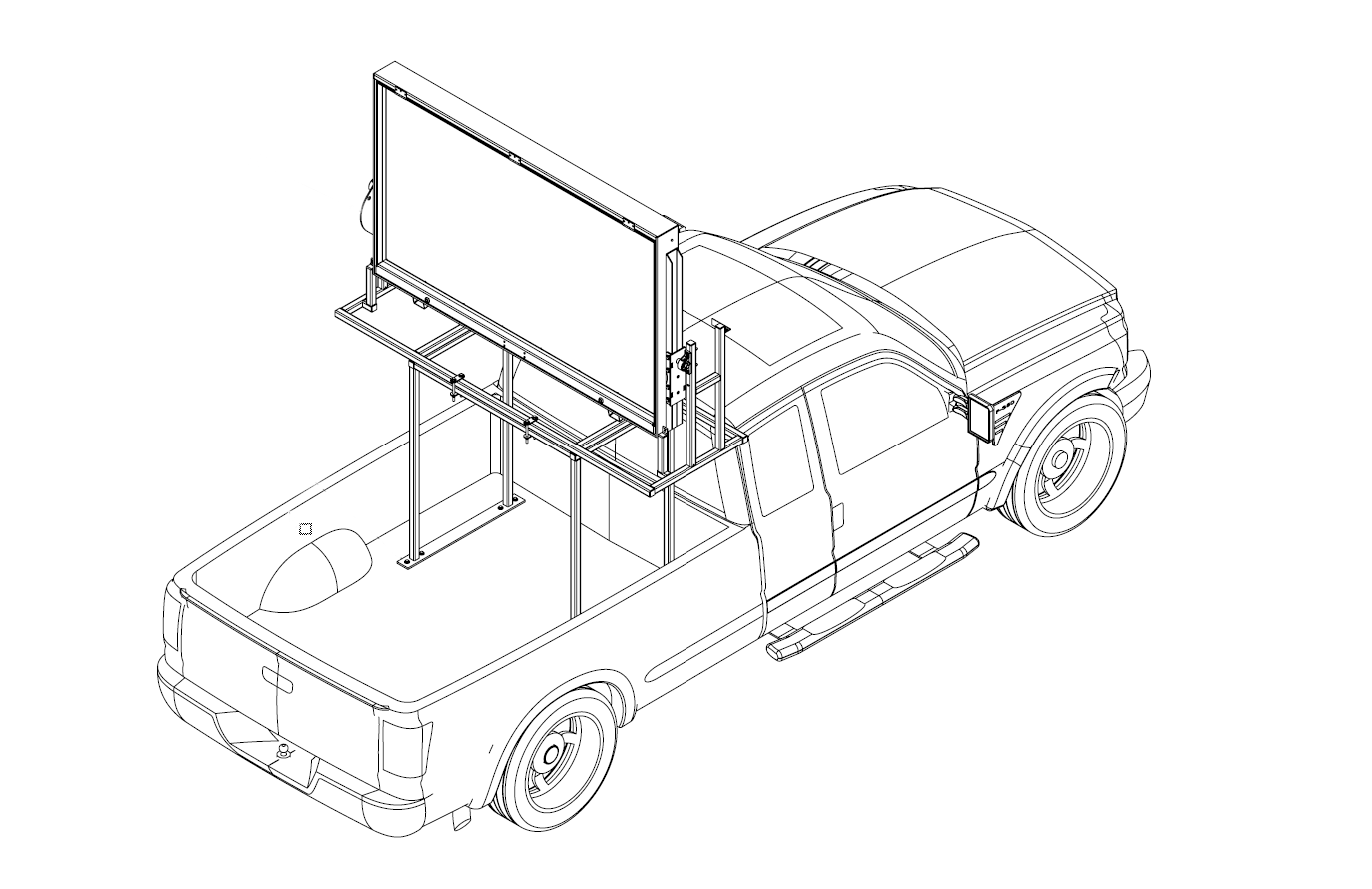

• Bed Floor mounting can be added (optional)

MOUNTING OPTIONS

• Operating height: 57"
• Operating width: 87"
• Rack material: Black-painted Steel
• Motor: Intelligent Electric Actuator
• Truck mounting hardware designed to fit any standard size pick-up truck

• Can be added to either manual or power tilt racks
• Overall height: 47"
• Overall width: 47"

WARRANTY

1 year on complete trailers. 2 years on electronic components manufactured by Ver-Mac.
